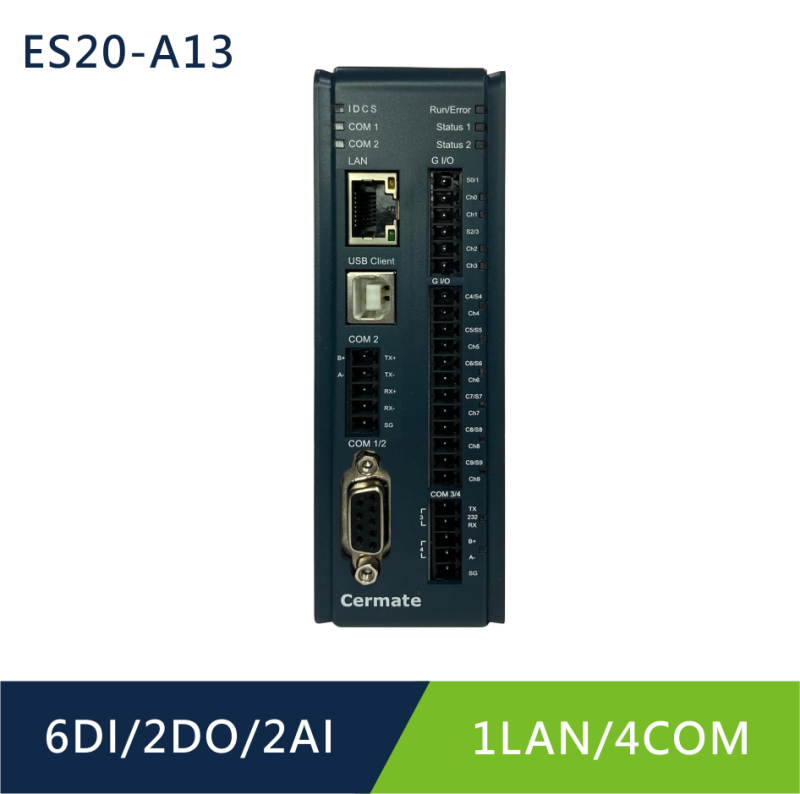

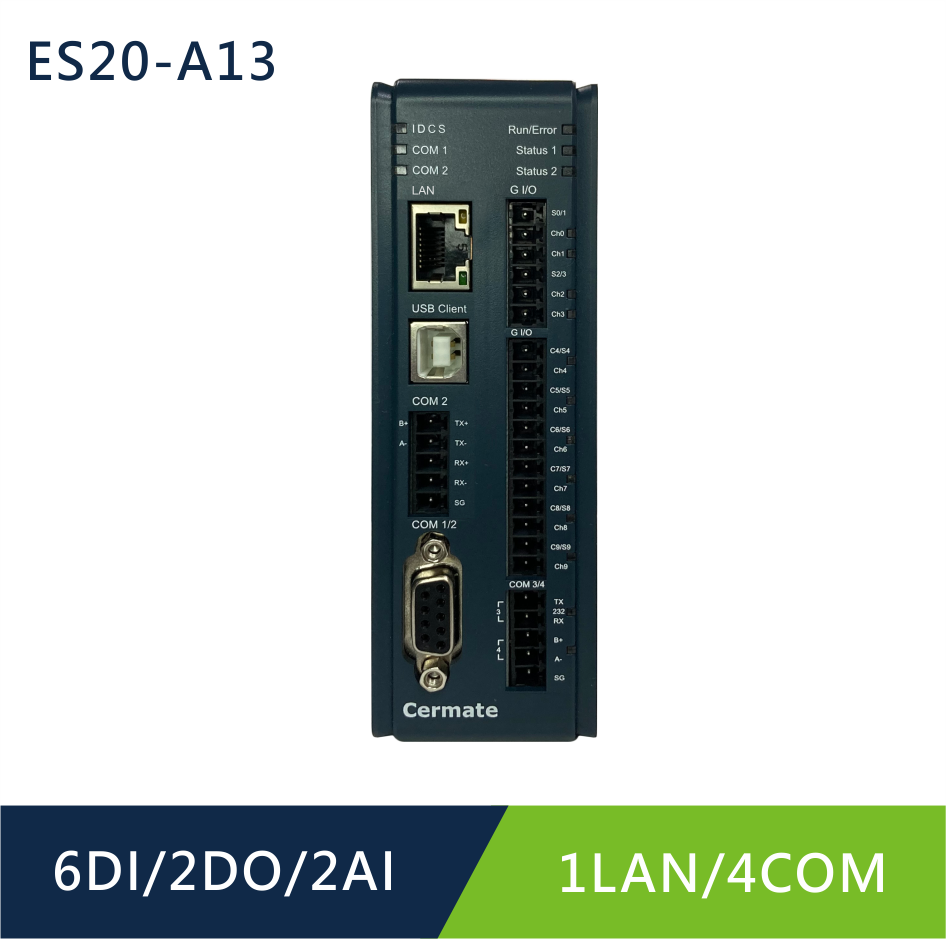

ES20-A13 1LAN / 4COM / 6DI / 2DO / 2AI

Intelligence、Communication、Visualization

Remote Maintenance Protocol Gateway

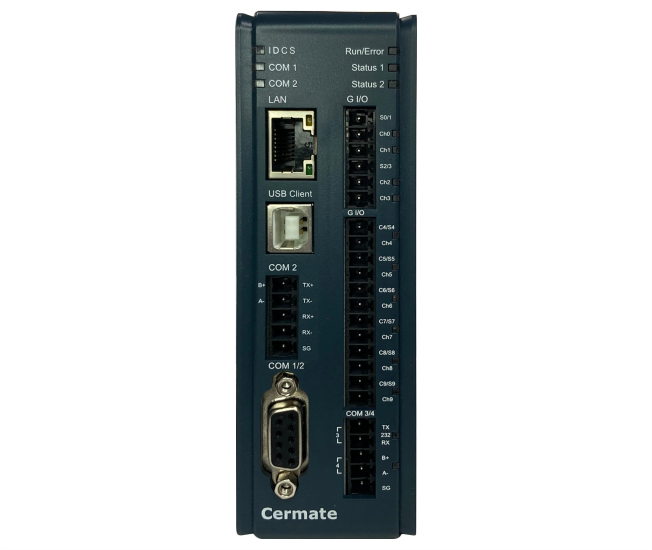

1LAN / 4COM / 1USB / COM3:RS-232 / COM4:RS-485 / 6DI / 2DO / 2AI

» Support all mainstream Serial and Ethernet protocols(500+)
» tManager: Remote maintenance for PLC program
» Gateway service: Consolidate OT data to IT system
» IDCS for OT remote management/monitoring/maintenance
» Optimize for upgrading old equipment w/Serial PLC
» Digital signage for real-time facility status monitoring

Categories: ,

Description

Details

Model Name ES20
Working Memory (128MB) O
Backup FRAM 0KB
Serial Port COM1:RS-232/422/485    COM2:RS-232/422/485
Ethernet 1*RJ45
USB 2.0(Host) —
USB 2.0(Client) O
RTC Network Time Protocol(NTP)

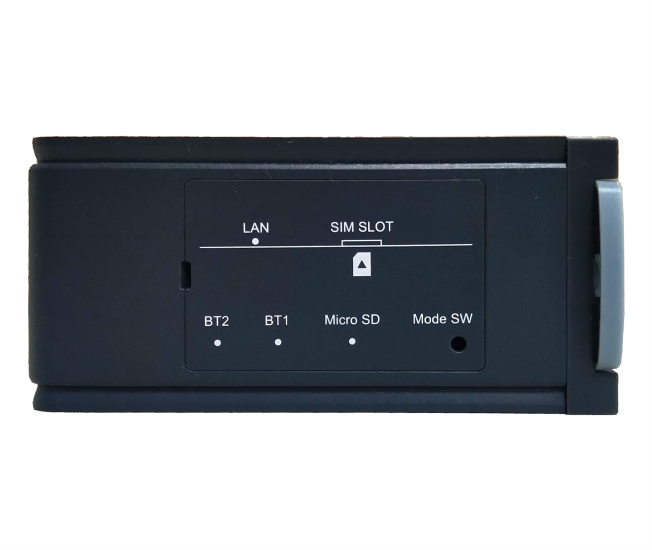

Micro SD Optional
A Side Expansion(Optional) O

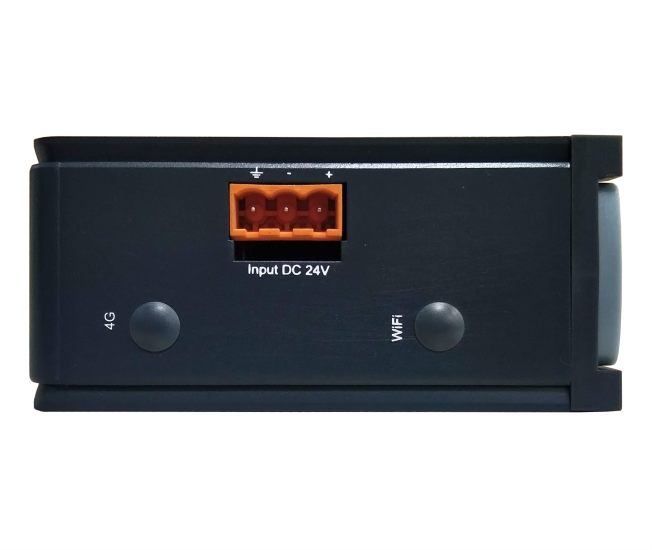

Supply Voltage Isolated 24Vdc±10%
Operating Temperature -20° C ~ 70° C
Relative Humidity 10% ~ 90%
Shock (Operation) Half sine, 15G, 11ms duration
Vibration (Operation) Random vibration 1 Grms (5~500 Hz)
FCC / CE YES / IEC61000-6-2 & IEC61000-6-4
Software Version PM Designer v4.0.5.31 or higher version
A13 Expansion Specifications
COM3 RS-232
COM4 RS-485
CAN Bus —
SIO(Safety signal contactor) —
GIO(I/O Port) Yes(6DI/2DO/2AI)
Wi-Fi —
4G / Wi-Fi —
B Side Expansion —
Weight(g) 303.8
