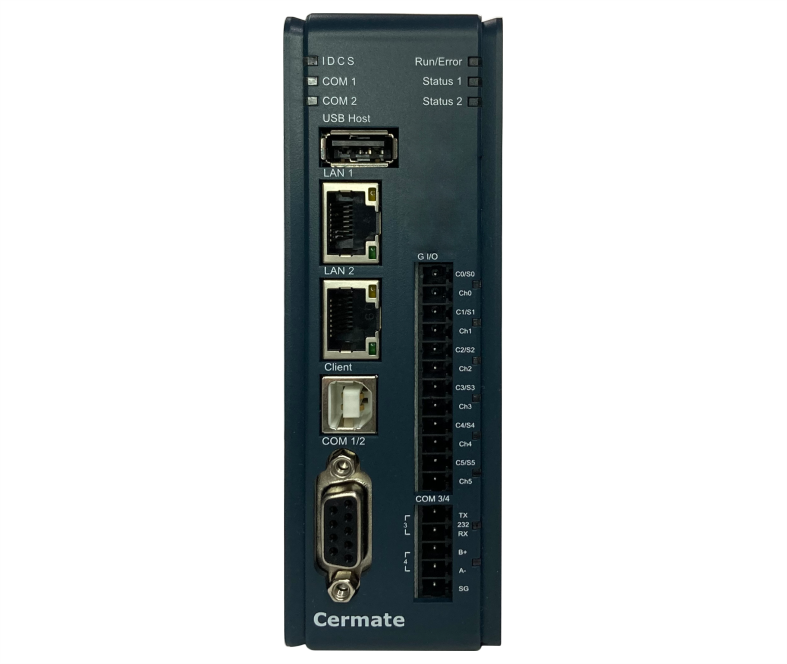

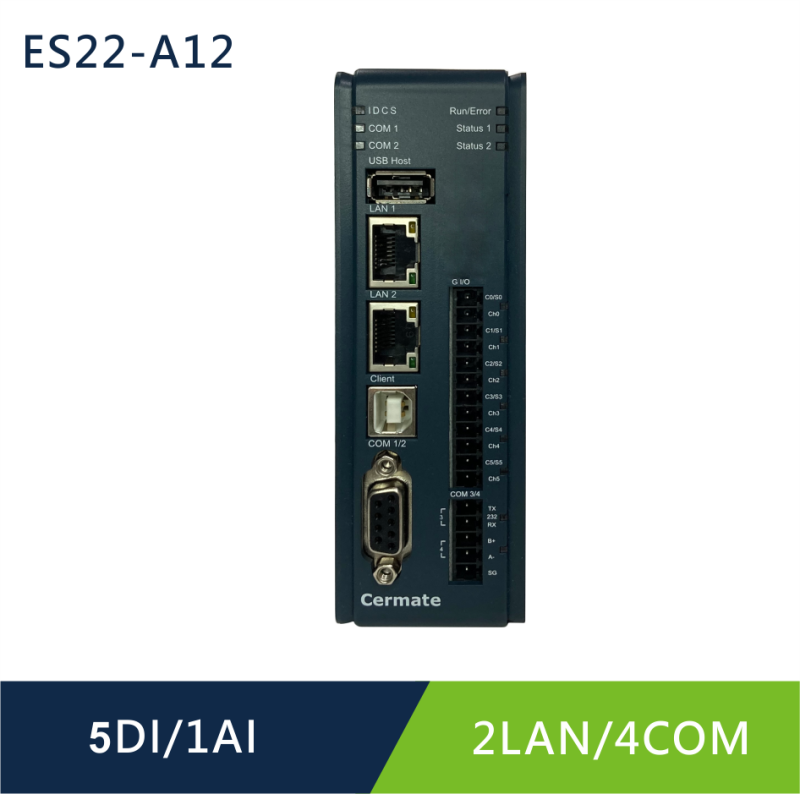

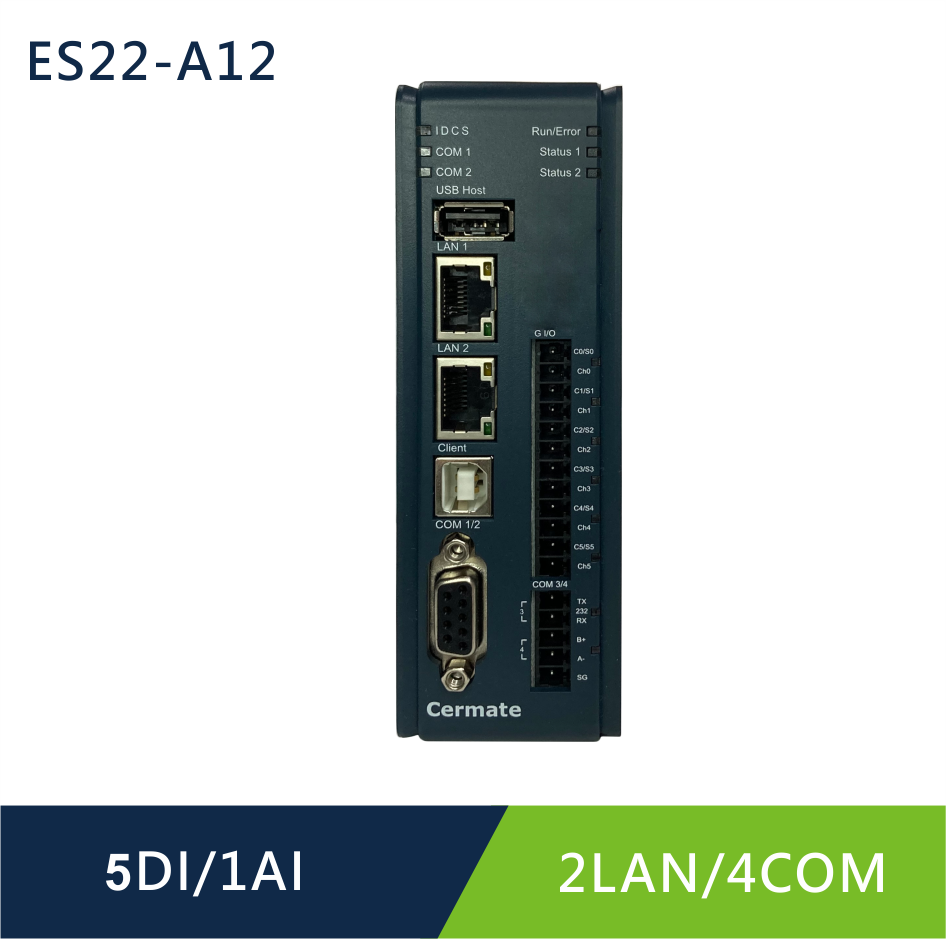

ES22-A12 2LAN / 4COM / 2USB / MICRO SD / 5DI / 1AI

Intelligence、Communication、Visualization

Cross-Domain IIoT Protocol Gateway
2LAN(Dual-IP) / 4COM / 2USB / Micro SD / RTC / 5DI / 1AI / COM3:RS-232 / COM4:RS-485

» Support all mainstream Serial and Ethernet protocols(500+)
» Dual Ethernet ports w/cross-domain IP for OT/IT integration
» Gateway service: Consolidate OT data to IT system
» IDCS for OT remote management/monitoring/maintenance
» Optimize for upgrading old equipment w/Serial PLC
» Digital signage for real-time facility status monitoring
» Support OPC UA
» MQTT: Support AWS, Azure, Ali Cloud and Advantech WISE-PaaS

Categories: ,

Description

Details

Model Name ES22
Working Memory (128MB) O
Backup FRAM 128KB
Serial Port COM1:RS-232/422/485    COM2:RS-485(RS-232 Optional)
Ethernet 2*RJ45 (Dual IP)
USB 2.0(Host) O
USB 2.0(Client) O
RTC O

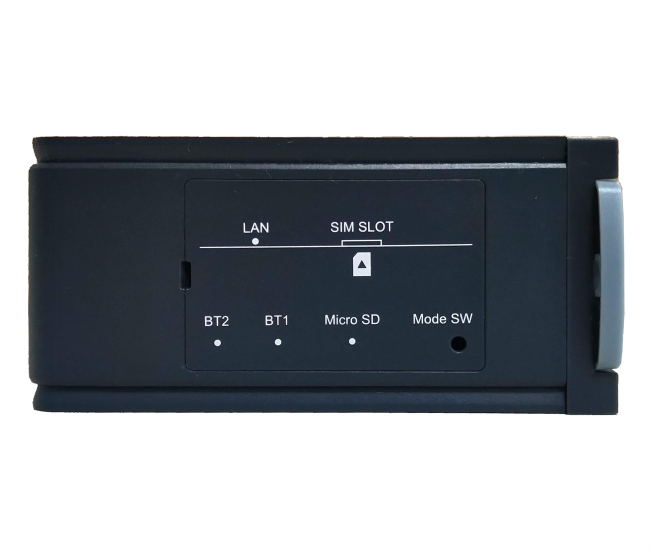

Micro SD O
A Side Expansion(Optional) O

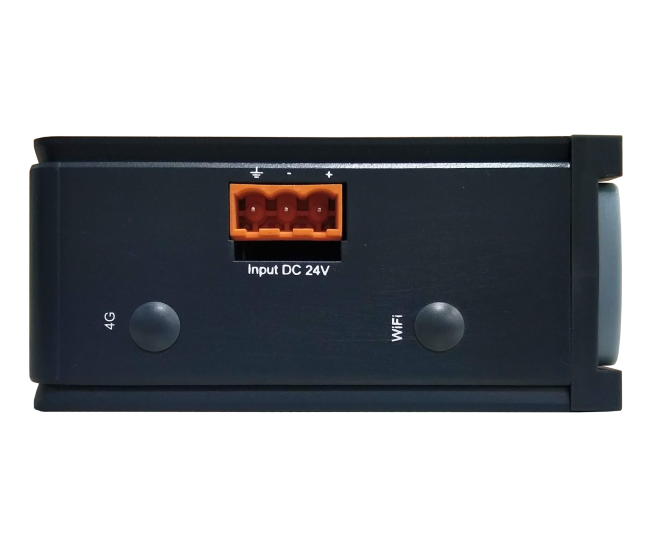

Supply Voltage Isolated 12~36Vdc±10%
Operating Temperature -20° C ~ 70° C
Relative Humidity 10% ~ 90%
Shock (Operation) Half sine, 15G, 11ms duration
Vibration (Operation) Random vibration 1 Grms (5~500 Hz)
FCC / CE YES / IEC61000-6-2 & IEC61000-6-4
Software Version PM Designer v4.0.5.31 or higher version
A12 Expansion Specifications
COM3 RS-232
COM4 RS-485
CAN Bus —
SIO(Safety signal contactor) —
GIO(I/O Port) Yes(5DI/1AI)
Wi-Fi —
4G / Wi-Fi —
B Side Expansion —
Weight(g) 291.8
