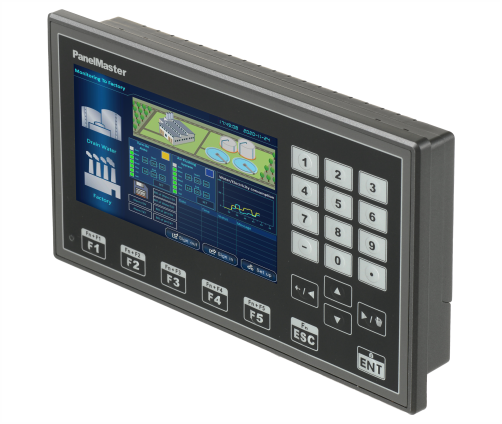

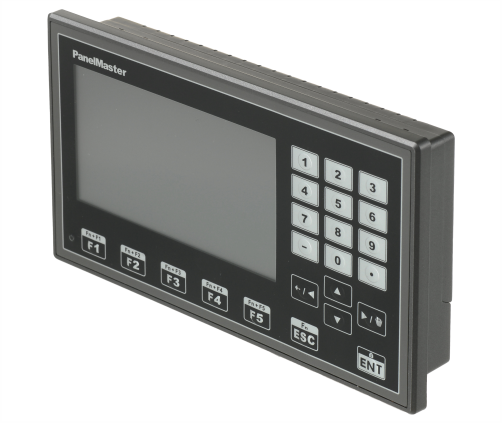

| Model Name | PT2043-WSK | |
| LCD Display | Size | 4.3″ diagonal |
| Max. Resolution | 480*272 | |
| Type | TFT LCD with LED Backlight | |
| Max. Colors | 16-bit | |
| Backlight Life (hr) | 20,000 | |
| Luminance (cd/m2) | 350 | |
| CPU & Memory |
CPU | ARM9 32Bit |
| Battery Backup SRAM | 128KB (Optional:1024KB) | |
| NAND Flash | 128MB | |
| Real-Time Clock (RTC) | Yes (Unchargeable Battery Type, 5 years battery life) |
|
| Max. Programming Pages | 7999 Pages | |
| Max. Macro Commands | Unlimited | |

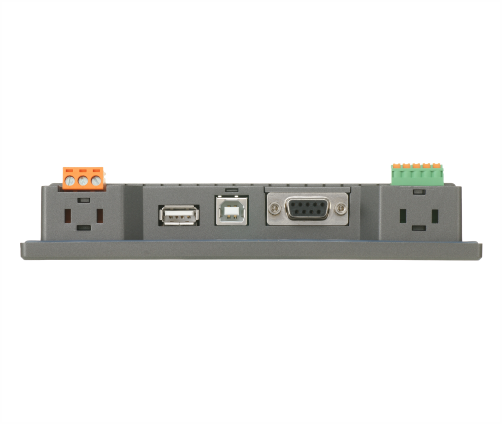

| Communication Interface |
Micro SD Slot | N/A |
| USB Host / Client | Host : USB2.0 / Client : USB2.0 | |
| COM1/COM3 | COM1 : RS232/422/485；COM3 : RS232 (Optional : RS485) | |
| COM2 | RS422/485 (5Pin Terminal) | |
| – | – | |

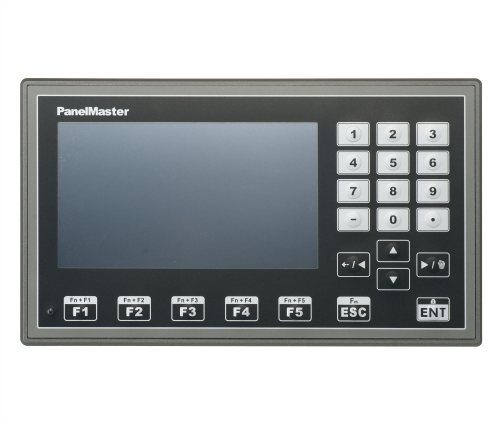

| Function Keys | 23-keys | |

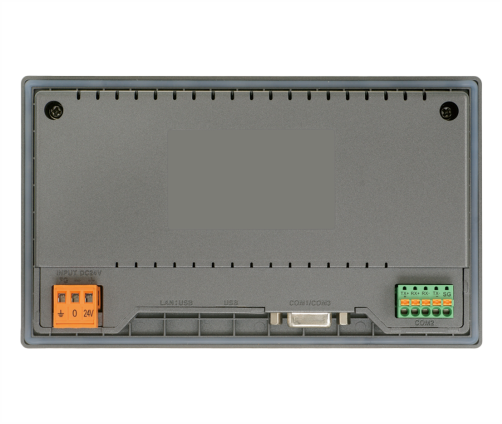

| Power | Supply Voltage | 24VDC±10%(Isolated) |
| Consumption | 20W | |
| Environment | Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 10%~90% | |
| Shock (operation) | Half sine, 20G, 11ms duration | |
| Vibration (operation) | Random vibration 1 Grms (5~500 Hz) | |
| Certification | CE(EN61000-6-2, EN61000-6-4) / FCC(Part15 Class A) | |
| Ingress Protection | IP65 | |
| Cooling | Natural Cooling | |
| – | – | |
| Mechanism Spec. | Dimension WxHxD (mm) | 172 X 102 X30 |
| Cutout Dimension AxB (mm) | 160.5 X 89.5 | |
| Net Weight (Kg) | 0.33 | |
| Software Version | PM Designer v2.1 | |
 |
||
 |
||
